Compounding and strand pelletizing line for incorporation of plastic alloy

Compounding and strand pelletizing line for incorporation of plastic alloy of PC/ABS, PA/ABS, CPE/ABS, PP/EPDM, PA/EPDM, PP/SBS, etc.

Product Description

Compounding and strand pelletizing line for incorporation of plastic alloy

The compounding modification of more than two kinds of resins is mainly aimed at the modification of processing flowability and mechanical properties. The two resins of alloy modification have good compatibility, close processing temperature and complementary characteristics, such as ABS/PC alloy, PPO/PS alloy, PA6/ABS alloy and so on.


The raw materials are often premixed, and after uniform mixing, are fed into the twin screw extruder by the feeder, and the addition of liquid additives is fed to the middle barrel of the extruder for some formulas. Then finish the process requirements of compounding dispersion, liquid injection,  and exhaust/vacuum, etc.


The common pelletizing way is water strand pelletizing.

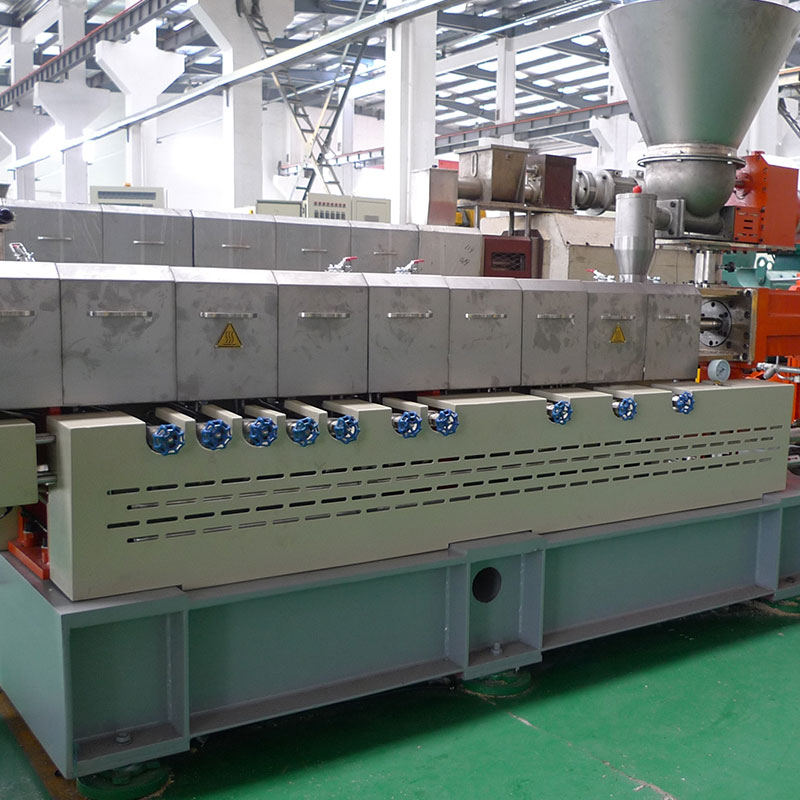

Compounding and strand pelletizing line for incorporation of plastic alloy

  1. high speed mixer  2. solids conveyor  3. main feeder  4. twin screw extruder  5. water trough  6. air knife  7. pelletizer  8. silo


Application

Polymer blendong: blending of PC/ABS, PA/ABS, CPE/ABS, PP/EPDM, PA/EPDM, PP/SBS, etc.
