TSB
CHUANGBO
Product Characteristics
Concise and pragmatic configuration, high quality components and competitive price, pursuing more efficiency and liability twin screw compounding extruder for normal processing work.

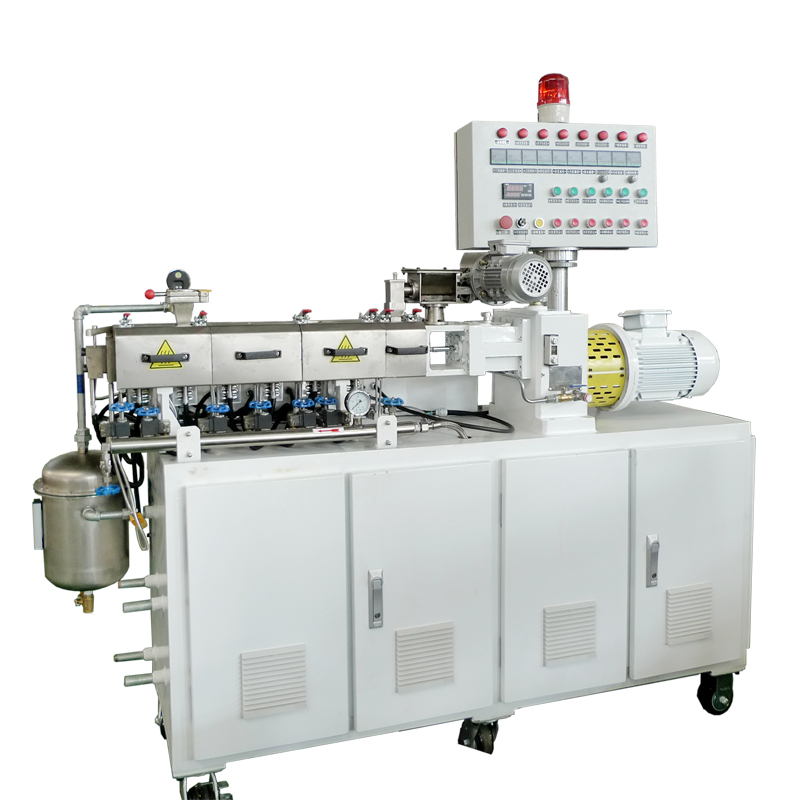

Chuangbo has been committed to developing a laboratory extruder. Today, we finally launched this TSB lab scale twin screw extruder. It is a universal model designed for universities, research institutes and large and medium-sized enterprises to engage in various extrusion teaching, extrusion variability research and small batch production. We produce various types of twin-screw extruder machines, equipped with customizable accessories to suit the pharmaceutical and industrial industries.
Typical Configuration
● Self-made standard gearbox: Imported key bearings.
● Electric control: Famous brand made by joint venture or China/meter control.
● All the essential parts as barrels, screw elements, gearbox bases and connectors are manufactured by CNC.
Model | Diameter (mm) | L/D | Screw speed (r/min) | Power (kw) | Torque (N.m) | Specific torque (T/A3) | Capacity (kg/h) |
TSB-18 | 18 | 32-60 | 400 | 1.5 | 17 | 5.1 | 0.5~6 |
600 | 2.2 | 17 | 5.0 | 0.5~10 | |||
TSB-25 | 26 | 32-60 | 500 | 5.5 | 50.4 | 4.7 | 3~15 |
600 | 7.5 | 57.3 | 5.4 | 3~25 | |||
TSB-35 | 35.6 | 32-68 | 500 | 15 | 138 | 5.1 | 10~55 |
600 | 18.5 | 141 | 5.2 | 10~90 | |||
900 | 30 | 159 | 5.8 | 20~120 | |||
TSB-40 | 41 | 32-68 | 400 | 22 | 252 | 6.1 | 30~110 |
600 | 30 | 229 | 5.6 | 50~150 | |||
900 | 45 | 238 | 5.8 | 75~225 | |||
TSB-52 | 51.4 | 32-68 | 500 | 45 | 413 | 5.2 | 80~225 |
600 | 55 | 420 | 5.3 | 100~275 | |||
900 | 75 | 398 | 5.0 | 150~375 | |||
TSB-65 | 62.4 | 32-68 | 400 | 75 | 860 | 6.1 | 150~375 |
500 | 90 | 825 | 5.9 | 180~450 | |||
600 | 110 | 840 | 6.0 | 220~550 | |||
900 | 160 | 848 | 6.0 | 350~825 | |||
TSB-75 | 71 | 32-68 | 400 | 110 | 1261 | 5.8 | 220~550 |
500 | 132 | 1210 | 5.6 | 275~660 | |||
600 | 160 | 1222 | 5.7 | 330~800 | |||
900 | 250 | 1325 | 6.1 | 500~1200 | |||
TSB-85 | 81 | 32-68 | 400 | 160 | 1834 | 5.9 | 330~800 |
500 | 200 | 1834 | 5.9 | 400~1000 | |||
900 | 350 | 1856 | 6.0 | 700~1800 | |||
TSB-95 | 93 | 32-68 | 400 | 250 | 2865 | 6.0 | 500~1250 |
500 | 280 | 2567 | 5.4 | 600~1400 | |||
900 | 500 | 2652 | 5.5 | 1100~2500 | |||
TSB-115 | 115.5 | 32-68 | 500 | 500 | 4584 | 5.2 | 1100~2500 |
TSB-135 | 133 | 32-68 | 400 | 650 | 7449 | 5.6 | 1500~3250 |
TSB-150 | 152 | 32-68 | 400 | 1000 | 11937 | 6.0 | 2200~4820 |
TSB-175 | 172.6 | 32-68 | 400 | 1500 | 17906 | 5.7 | 3300~7185 |
