Conical Feeder

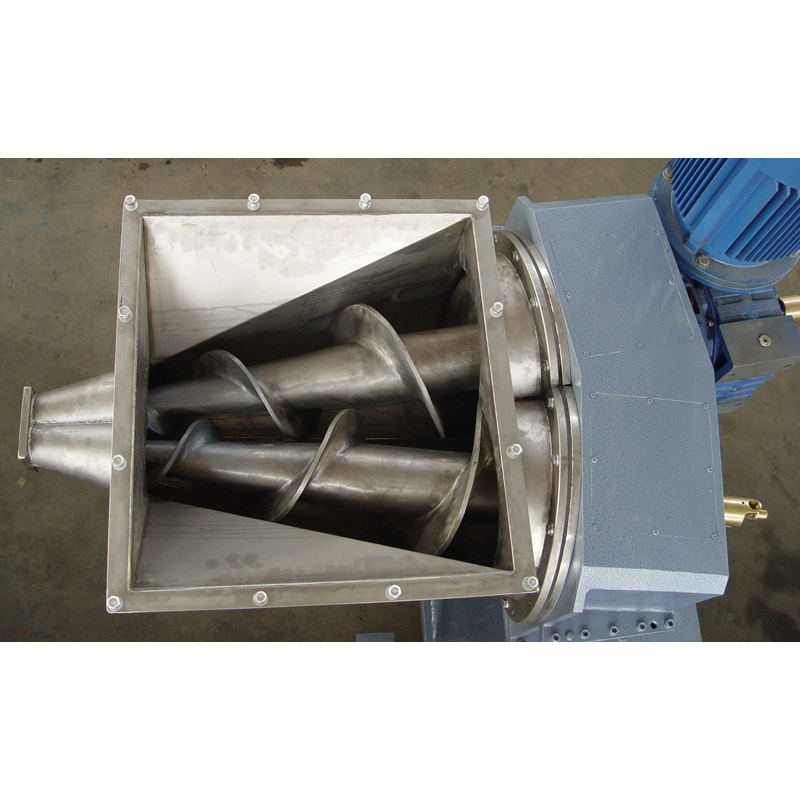

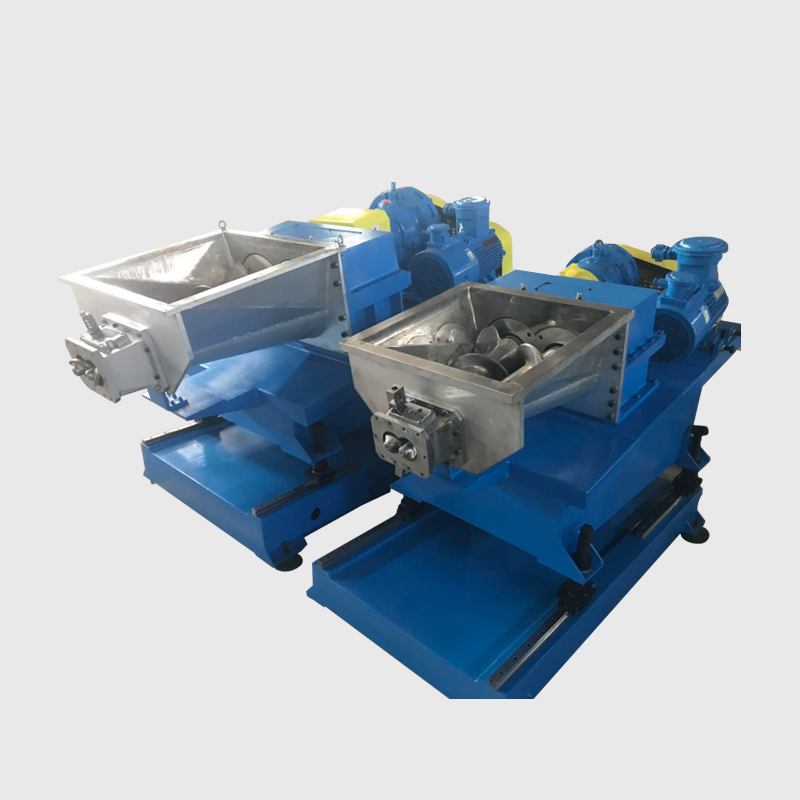

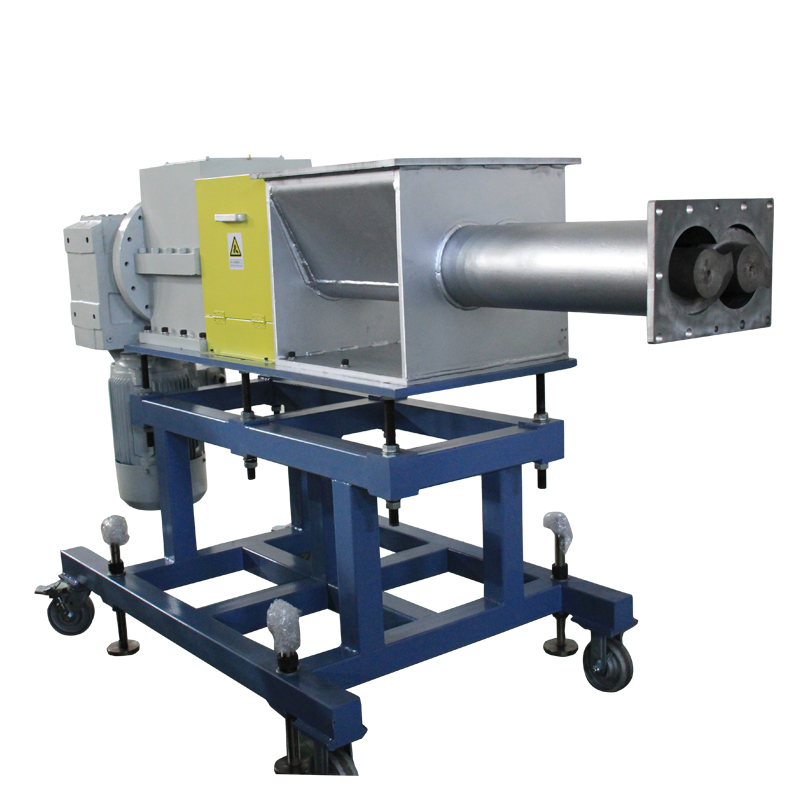

Conical twin screw force feeder is specially designed to feed big block and dough material. The block material coming from kneader used to be cold, then cut by hand. It wastes too much time, labor and cost.

Product Description

Conical twin screw force feeder is specially designed to feed big block and dough material. The block material coming from kneader used to be cold, then cut by hand. It wastes too much time, labor and cost. While Conical twin screw force feeder can solve this problem. You don’t have to cut the block coming from the kneader, just using the conveyor send the block to the conical twin screw force feeder, then it will extrude the material into single screw extruder, twin screw extruder, calendar and so on.



Conical twin screw force feeder saves much time, cost and at least 2 workers for your company. What’s more, conical twin screw force feeder has better stability, lower maintenance, easier operation and higher capacity.



The common combinations are: kneader + conical twin screw force feeder + single screw extruder, kneader + conical twin screw force feeder + twin screw extruder, kneader + conical twin screw force feeder + two stage compounding line.


Specification

Model

Twin Screw Extruder Size Fitted

Single Screw Extruder Size Fitted

Kneader Size Fitted

Power (kW)

Speed (rpm)

CTS45

20mm, 30mm

30-45mm

1L, 3L, 5L

2.2

110

CTS60

35mm, 40mm

50-90mm

10L, 15L

5.5

70.8

CTS90

52mm

100-140mm

30L

7.5

70.8

CTS110

65mm, 75mm, 95mm

150-250mm

55L, 75L, 110L

11

70.8
