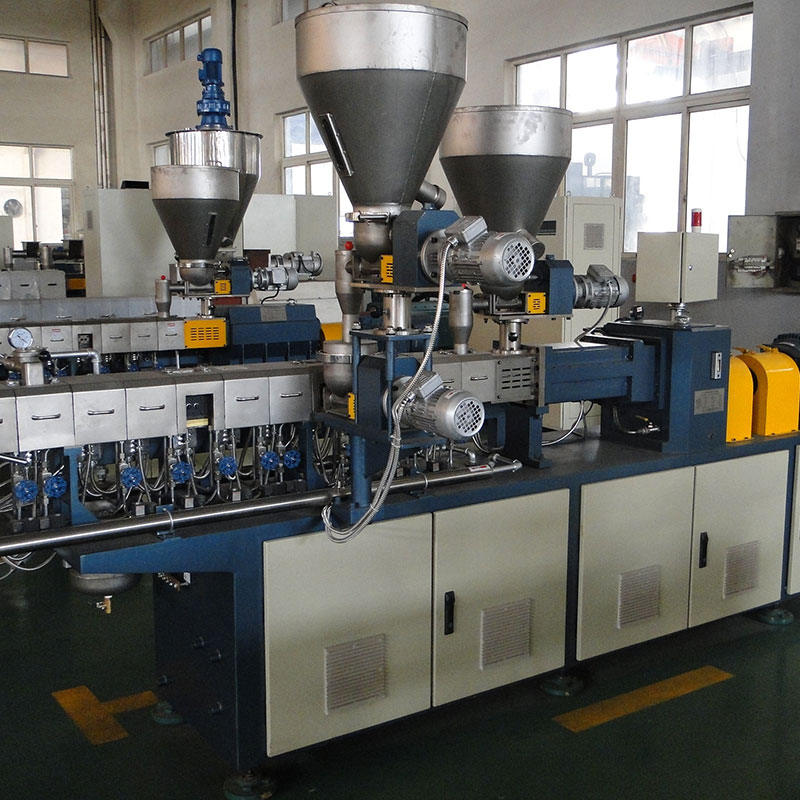

Glass Fiber (Carbon Fiber) Reinforcement Extruder

Water cooling strand pelletizing line for fiber reinforcement: glass fiber, carbon fiber reinforced PP, PA, PBT, ABS, AS, PC, POM, PPS, PET, PPO, PSF, LCP etc.

Product Description

Water Cooling Strand Pelletizing Line for Fiber Reinforcement


Fibers are added to the polymer to increase the rigidity (strength and modulus) of the product. The common polymer resin is PA, PP, and the common fiber is glass fiber, carbon fiber. Common addition ration is 10~50%. The glass fiber is evenly distributed in the resin, and the longer the retention length is, the better the strengthening effect is.


Plastic particles, auxiliaries and powder are fed by loss-in-weight feeder respectively, The precision of proportioning is high, and the phenomenon of material layering and bridging is avoided. For the simple formulation, the materials after evenly premixing can be fed into twin screw extruder by volumetic feeder.


The glass fiber is usually added in the middle and rear section of the processing barrels to avoid too short effective length because of excessive shear. The short cut glass fiber or carbon fiber is added by the side feeder, and the long glass fiber is added directly to the opening of the barrels through the screw rotation and traction automatically, and the long glass fiber is added continuously.


The common pelletizing way is water strand pelletizing.

Water Cooling Strand Pelletizing Line for Fiber Reinforcement

1. high speed mixer  2. solids conveyor  3. main feeder  4. side feeder  5. glass fiber  6. twin screw extruder  7. water trough  8. air knife  9. pelletizer  10. silo

Application

Fiber reinforcement: glass fiber, carbon fiber reinforced PP, PA, PBT, ABS, AS, PC, POM, PPS, PET, PPO, PSF, LCP etc.
