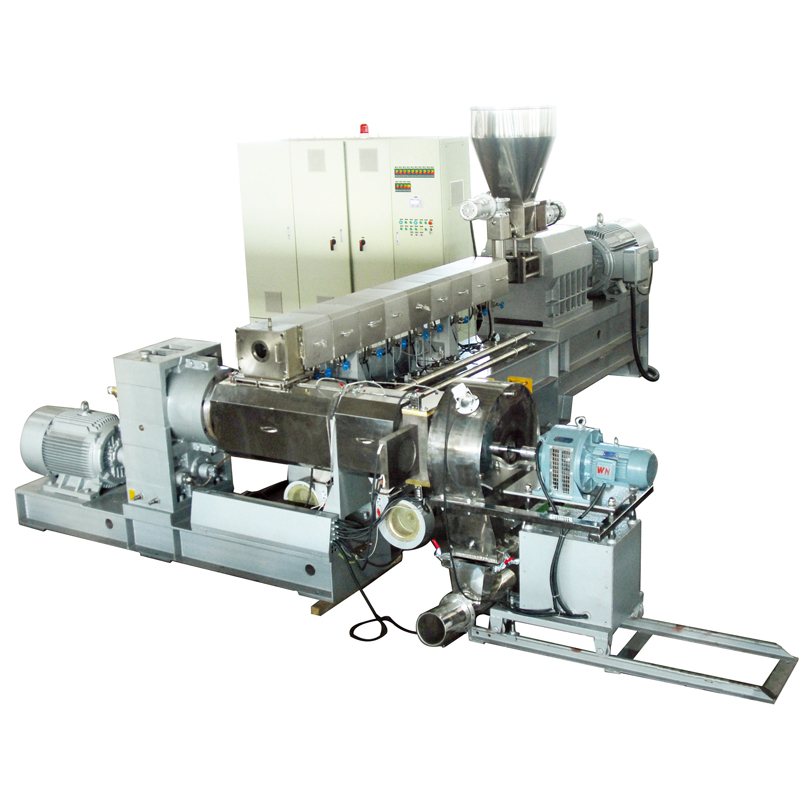

Tandem Extruder TSC

Tandem extruder (two stage extruder) is good at processing such heat-sensitive and shear-sensitive material like PVC, XLPE, HFFR cable or shield material etc.

  • TSC
  • CHUANGBO

Machine Characteristics

 Stage 1 is co-rotating twin-screw extruder, which makes use of twin-screw high speed, high shearing and strong compounding advantages to have material compounded in a shorted length of stay and finished compounding process under no die head back pressure.

 Stage 2 is single-screw extruder. The screw low speed and deep slot provide low shearing process environment, which prevent the compounded material from decomposing because of overheat under high pressure.

 The raised operational flexibility and accurate temperature control do facilitate realization of different technological processes, maximally enhancing production efficiency.

 It is good at processing such heat-sensitive and shear-sensitive material like PVC,XLPE,HFFR cable or shield material etc.


Specification

Type

Diameter

(mm)

L/D

Screw speed

(r/min)

Power

(kw)

Capacity

(kg/h)

TSC-52/120

TSB-52

51.4

24~48

500

45

100~300

SE-120

120

7~20

85

30~37

TSC-52/150

TSH-52

51.4

24~48

600

90

200~500

SE-150

150

7~20

85

37~45

TSC-65/150

TSB-65

62.4

24~48

500

75

200~500

SE-150

150

7~20

85

37~45

TSC-65/180

TSH-65

62.4

24~48

600

160

400~1000

SE-180

180

7~20

85

45~55

TSC-75/180

TSB-75

71

24~48

500

110

400~800

SE-180

180

7~20

85

45~55

TSC-75/200

TSH-75

71

24~48

600

250

700~1500

SE-200

200

7~20

85

55~75

TSC-95/200

TSB-95

93

24~48

400

200~250

700~1500

SE-200

200

7~20

85

55~75

TSC-95/220

TSB-95

93

24~48

400

200~250

800~1600

SE-220

220

7~20

85

75~90
