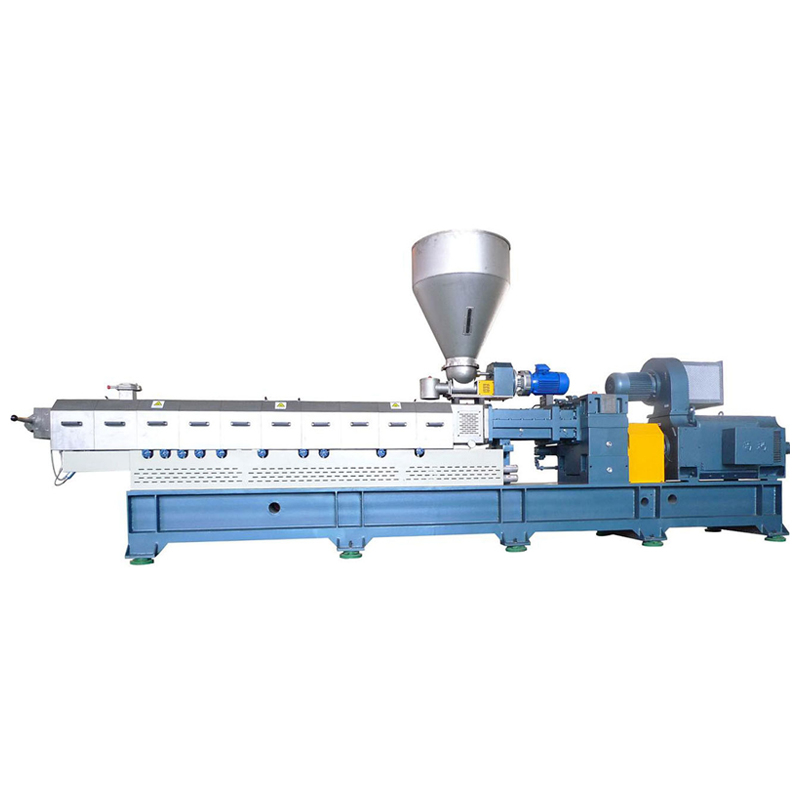

Twin Screw Extruder Super Performance TSS

Technical specifications, product performance and comprehensive quality is integrated with the international advance level, with outstanding cost-performance advantage compared with world-class products.
  • TSS

  • CHUANGBO

Availability:
Twin Screw Extruder Super Performance TSS
Twin Screw Extruder Super Performance TSS

Product Characteristics

Chuangbo twin screw extruder, technical specifications, product performance and comprehensive quality is integrated with the international advance level, with outstanding cost-performance advantage compared with world-class products.


Typical Configuration

 Imported European high torque gearbox and lubrication system.

 Imported European safety clutch.

 Intensified machine design in accordance with high torque load.

 Electrical control: top level touch screen, first rank international brand for components.

 All the essential parts, such as barrels, screw elements, gearbox bases and connectors, are manufactured by CNC. Three-coordinates instrument for strictly precision monitoring


Model

Diameter

(mm)

L/D

Screw speed

(r/min)

Power

(kw)

Torque

(N.m)

Specific torque

(T/A3)

Capacity

(kg/h)

TSS-35

35.6

32-68

500

30

286

10.6

10~150

600

37

294

10.9

12~180

900

55

291

10.8

18~270

TSS-40

41

32-68

500

45

429

10.4

135~225

600

55

437

10.6

160~270

900

90

477

11.6

240~400

TSS-52

51.4

32-68

500

90

825

10.4

270~450

600

110

825

10.4

330~550

900

160

848

10.6

480~810

TSS-65

62.4

32-68

500

160

1467

10.4

480~800

600

200

1528

10.9

600~1000

900

280

1485

10.5

820~1450

TSS-75

71

32-68

500

250

2292

10.6

750~1250

600

315

2407

11.1

945~1575

900

400

2387

11.0

900~2300

TSS-95

93

32-68

500

550

5043

10.6

1650~2750

600

650

4966

10.5

1950~3250

900

1000

5305

11.1

2950~4800

TSS-115

115.5

32-68

500

1000

9168

10.4

3300~5000

TSS-135

133

32-68

500

1500

13752

9.8

4500~7500
