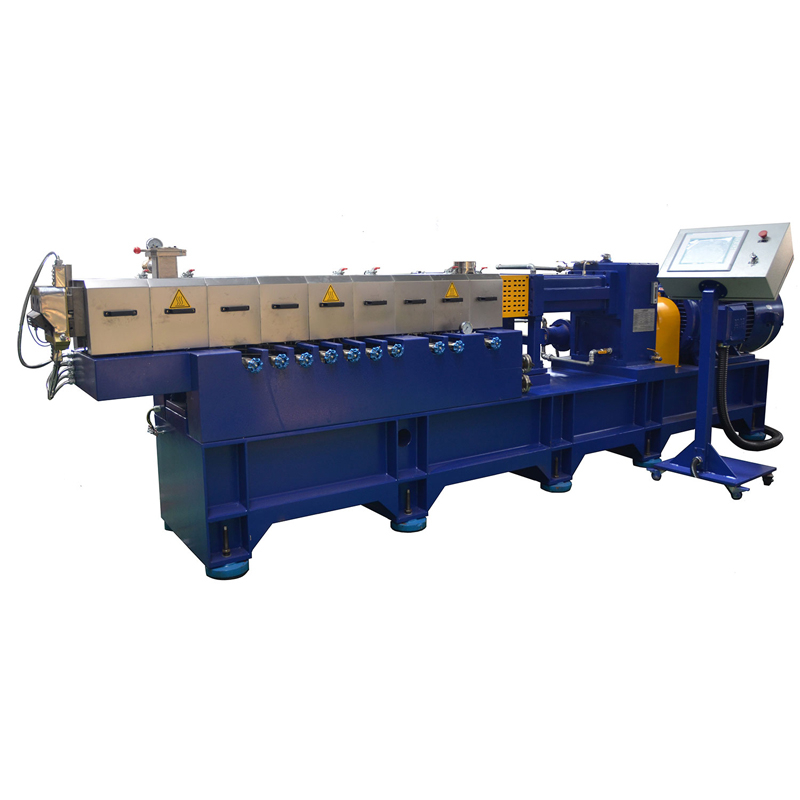

TSH
CHUANGBO
Product Characteristics
Leading twin screw extruder manufacturer domestically in performance specifications, configuration in function, high quality and efficiency, combined with extensive experience in application technology to create greater value for customers.
Typical Configuration
● Self-made standard gearbox: imported key bearings, self-made safety clutch or imported safety clutch optionally.
● Intensified machine design in accordance with high torque load.
● Electrical control: Advanced meter control or computer + touch screen, electrical components adopt famous brands.
● All the essential parts, such as barrels, screw elements, gearbox bases and connectors, are manufactured by CNC.
Model | Diameter (mm) | L/D | Screw speed (r/min) | Power (kw) | Torque (N.m) | Specific torque (T/A3) | Capacity (kg/h) |
TSH-25 | 26 | 32-60 | 400 | 7.5 | 86 | 8.1 | 3~25 |
600 | 11 | 84 | 7.9 | 5~35 | |||
900 | 15 | 80 | 7.9 | 7.5~82.5 | |||
TSH-35 | 35.6 | 32-68 | 500 | 22 | 202 | 7.5 | 10~110 |
600 | 30 | 229 | 8.5 | 10~150 | |||
900 | 45 | 238 | 8.8 | 15~225 | |||
TSH-40 | 41 | 32-68 | 500 | 37 | 339 | 8.3 | 110~200 |
600 | 45 | 344 | 8.4 | 135~225 | |||
900 | 55 | 292 | 7.1 | 190~335 | |||
TSH-52 | 51.4 | 32-68 | 500 | 75 | 688 | 8.6 | 225~375 |
600 | 90 | 688 | 8.6 | 270~450 | |||
900 | 110 | 583 | 7.3 | 350~650 | |||
TSH-65 | 62.4 | 32-68 | 500 | 132 | 1210 | 8.6 | 396~660 |
600 | 160 | 1222 | 8.7 | 480~800 | |||
900 | 250 | 1326 | 9.4 | 650~1200 | |||
TSH-75 | 71 | 32-68 | 500 | 200 | 1834 | 8.5 | 600~1000 |
600 | 250 | 1910 | 8.8 | 750~1250 | |||
900 | 350 | 1856 | 8.5 | 950~1800 | |||
TSH-85 | 81 | 32-68 | 500 | 280 | 2567 | 8.2 | 840~1400 |
600 | 350 | 2674 | 8.6 | 1050~1750 | |||
900 | 500 | 2652 | 8.5 | 1450~2600 | |||
TSH-95 | 93 | 32-68 | 500 | 450 | 4126 | 8.7 | 1350~2250 |
600 | 550 | 4202 | 8.9 | 1650~2750 | |||
900 | 800 | 4240 | 8.9 | 2000~4000 | |||
TSH-115 | 115.5 | 32-68 | 500 | 800 | 7334 | 8.3 | 2400~4000 |
TSH-135 | 133 | 32-68 | 400 | 1000 | 11460 | 8.6 | 3000~5000 |
