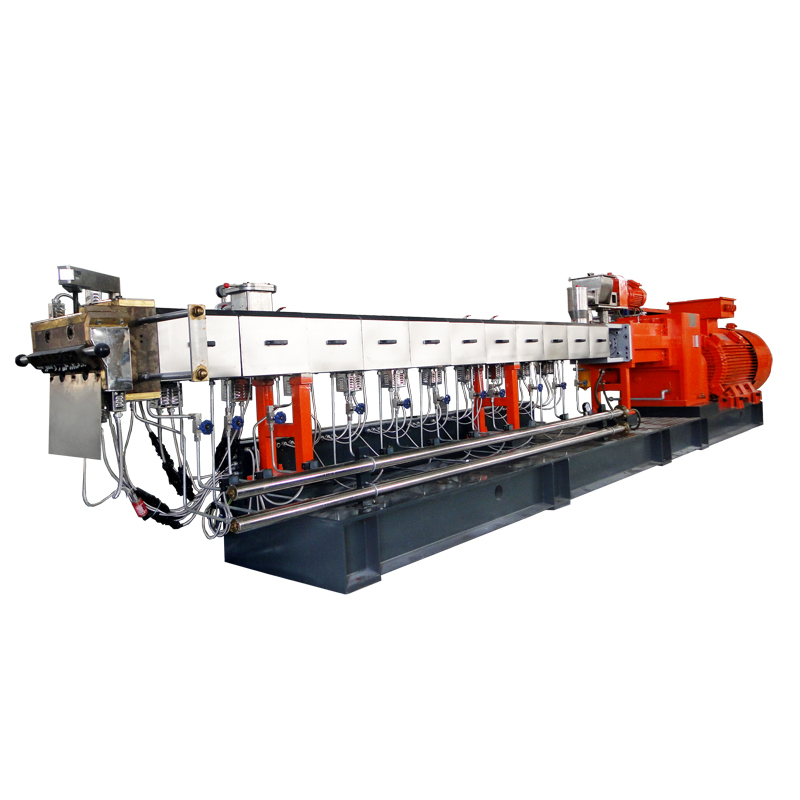

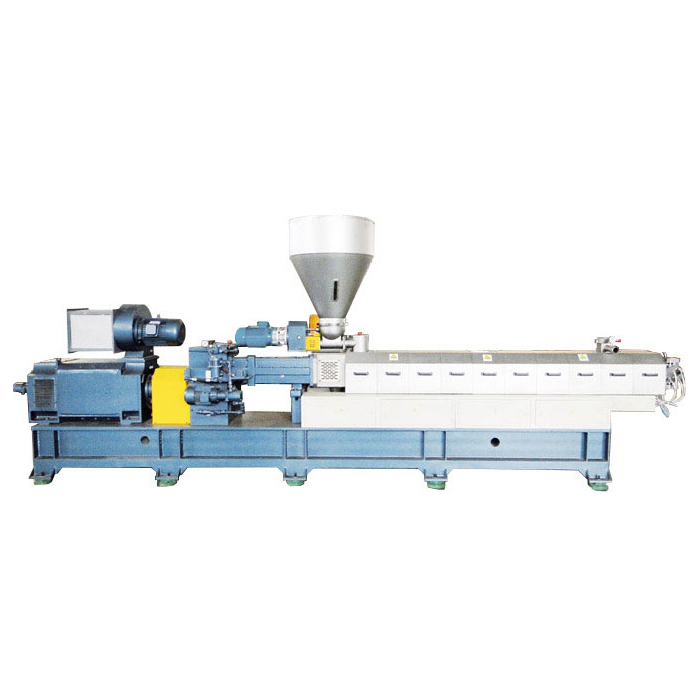

Twin Screw Extruder Super Volume TSV

CHUANGBO twin extruder machine focus on low specific energy consumption. Super large volume and high torque are combined together, pursing much optimized balance and matching in efficiency.Your Reliable Partner.

  • TSV
  • CHUANGBO

Product Characteristics

Chuangbo twin screw extruder, focus on low specific energy consumption. Super large volume and high torque are combined together, pursing much optimized balance and matching in efficiency.


Typical Configuration

Self-made standard gearbox as based, imported key bearings, self-made safety clutch or imported safety clutch optionally.

 Intensified machine design in accordance with high torque load.

 Electric control: Advanced meter control or computer + touch screen. Electric components adopt famous brand.

 All the essential parts as barrels, screw elements, gearbox based and connectors are manufactured by CNC.


Model

Diameter

(mm)

Do/Di

L/D

Screw speed

(r/min)

Power

(kw)

Torque

(N.m)

Specific torque

(T/A3)

Capacity

(kg/h)

TSV-44

44

1.8

32-68

500

30

280

6.8

90~150

600

37

285

7.0

110~250

800

45

260

6.5

135~225

TSV-55

55

1.8

32-68

500

55

510

6.5

165~275

600

75

575

7.3

225~375

800

90

520

6.5

270~450

TSV-66

66

1.8

32-68

500

110

1015

7.2

330~550

600

132

1015

7.2

396~660

800

160

920

6.6

480~800

TSV-77

77

1.8

32-68

500

160

1475

7.0

480~800

600

200

1535

7.1

600~1000

800

250

1440

6.7

750~1250

TSV-86

86

1.8

32-68

500

250

2300

7.4

750~1250

600

315

2415

7.8

945~1575

800

400

2300

7.4

1200~2000

TSV-100

99

1.8

32-68

500

400

3680

7.8

1200~2000

600

500

3835

8.0

1500~2000

TSV-120

122

1.8

32-68

500

730

6692

7.5

2190~3650

TSV-140

140

1.8

32-68

400

900

10314

7.7

2700~4500
